15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks

Place of Origin : China

Brand Name : SCED

Certification : UL, CE

Model Number : TB762-07

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Number of Contacts : 2P-22P

Pitch : 7.62mm

Rated Current : 15A

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Levels : Double Levels

Contact Now

15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks

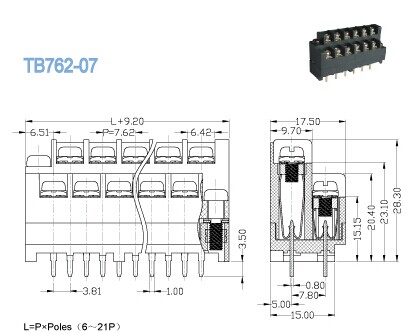

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

300 / 10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Phosphor Bronze/ Gold Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7

15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

15A Barrier Terminal Block , Double Levels Pitch 7.62mm Power Terminal Blocks

Tag:

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
